What are VLANs?
VLANs are virtual networks created within a physical network infrastructure to isolate and organize devices logically. Each VLAN operates independently, functioning as a self-contained network with its own rules, security measures, network resources, and broadcast domains. Devices are assigned to a VLAN based on criteria such as departmental roles, specific functions, or security needs, making network segmentation both flexible and efficient.

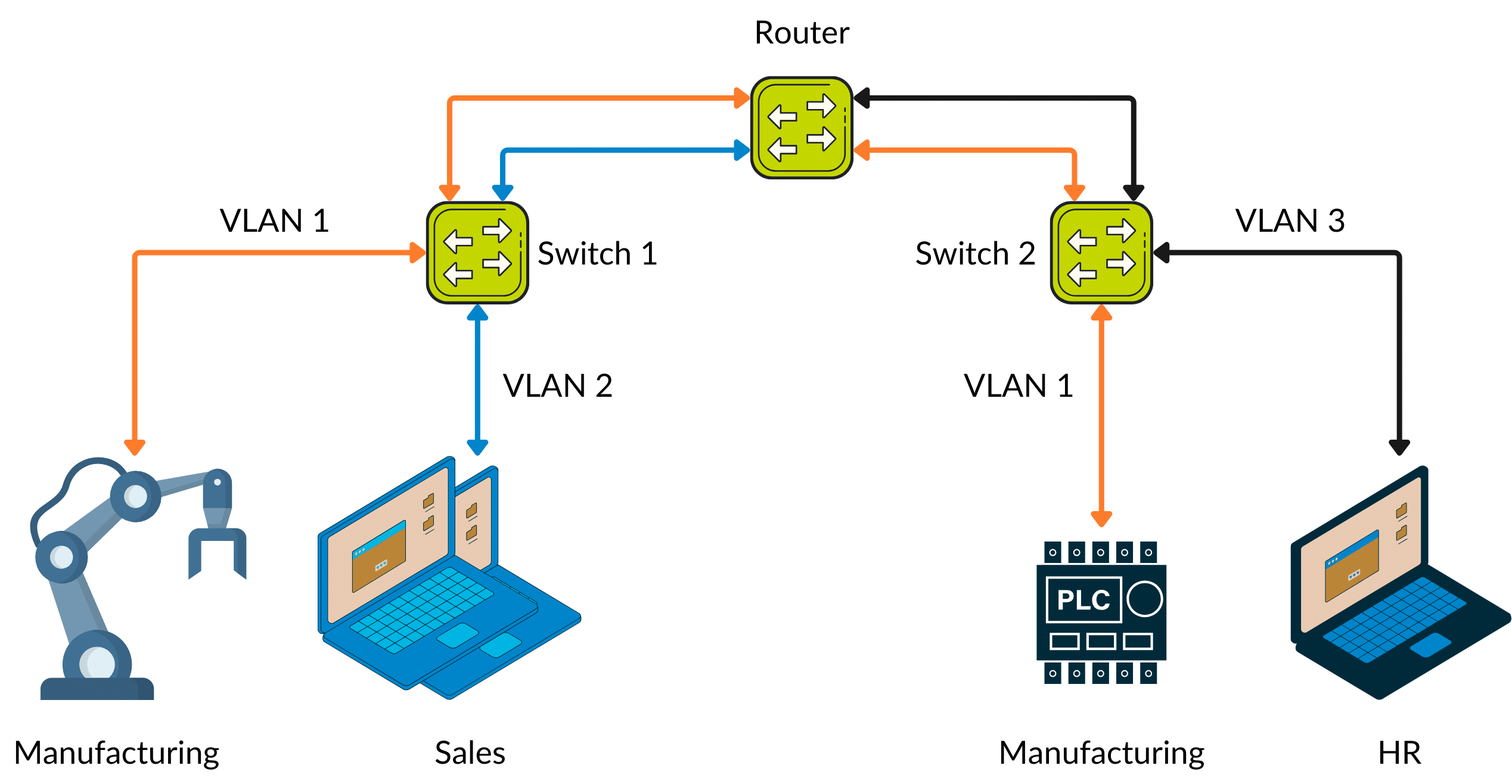

The segmentation is achieved by assigning devices to specific VLANs based on their port, MAC address, or other criteria, regardless of their physical location. VLANs operate at Layer 2 of the OSI model, enabling traffic separation and improved network management without requiring separate physical infrastructure.

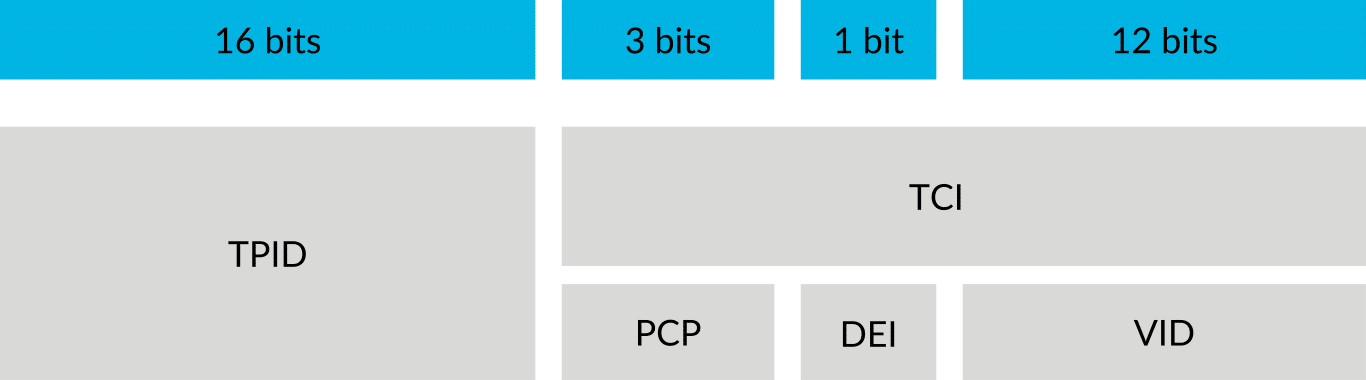

When a VLAN is added to an Ethernet frame, it includes an extra 4-byte tag (defined by IEEE 802.1Q) inserted after the source MAC address. This tag consists of the following:
Tag Protocol Identifier (TPID): A 2-byte field set to 0x8100, indicating that the frame is VLAN-tagged.
Tag Control Information (TCI): A 2-byte field that contains three subfields:
Priority Code Point (PCP): 3 bits used for Quality of Service (QoS) prioritization.
Drop Eligible Indicator (DEI): 1 bit indicating if the frame can be dropped during congestion.
VLAN Identifier (VID): 12 bits specifying the VLAN ID (0-4095).
This tagging mechanism ensures that VLANs can manage traffic efficiently while maintaining compatibility with Ethernet standards.
Benefits of VLANs in Industrial Networks
Enhanced Security: VLANs isolate network traffic, reducing the risk of unauthorized access and minimizing the spread of potential cyber threats. For example, traffic from sensitive control systems can be isolated from non-critical IT systems.
Improved Network Performance: By segregating traffic, VLANs reduce broadcast domains, minimizing congestion and ensuring better performance for latency-sensitive industrial applications.
Simplified Network Management: VLANs allow administrators to logically group devices, such as sensors, controllers, and operator stations, simplifying configuration and troubleshooting.
Cost Efficiency: VLANs reduce the need for separate physical networks, enabling cost-effective network expansion and maintenance.
VLANs in Industrial Protocols
Industrial communication protocols such as Profinet, EtherNet/IP, Modbus TCP, and CC-Link IE require deterministic and reliable data exchange. VLANs enhance the efficiency and reliability of these protocols by:
Traffic Prioritization with VLAN Tagging
VLAN tagging, as defined by the IEEE 802.1Q standard, adds a tag to Ethernet frames indicating the VLAN ID. This mechanism allows industrial protocols to leverage Quality of Service (QoS) features, ensuring high-priority traffic, such as real-time process data, is transmitted ahead of less critical information like monitoring or logging data.
Profinet, a widely used industrial protocol, explicitly utilizes VLAN tagging to prioritize its real-time communication. By assigning specific VLAN IDs and configuring QoS parameters, Profinet ensures that high-priority cyclic data, such as sensor updates and actuator commands, are transmitted with minimal latency. Similarly, RT-Labs’ P-Net Profinet device stack incorporates VLAN tagging to meet the stringent timing requirements of Profinet networks. This integration guarantees efficient handling of data traffic, particularly in complex industrial environments.
Segregation of Protocol Traffic
Industrial networks often employ multiple protocols simultaneously. VLANs segregate traffic for each protocol, preventing interference and ensuring optimal performance. For example, a Profinet VLAN can be separated from a Modbus TCP VLAN, ensuring that the high-speed Profinet communication is not delayed by Modbus traffic.
Interfacing Between IT and OT Networks
Modern industrial environments require seamless integration between Operational Technology (OT) and Information Technology (IT) systems. VLANs facilitate this integration by creating distinct communication paths while maintaining strict access controls. For instance, production data can be routed to IT systems for analytics without exposing the control network to unnecessary traffic.
Practical Applications of VLANs in Industrial Networks
Factory Automation: VLANs are used to isolate different production lines, ensuring localized faults do not impact other areas of the factory.
Building Automation Systems (BAS): Devices such as HVAC controls, lighting systems, and security cameras are segmented into distinct VLANs to streamline management and enhance security.
Marine and Offshore Platforms: VLANs provide robust communication between navigation, safety, and operational systems in harsh and remote environments.
Process Automation: Critical systems such as Distributed Control Systems (DCS) and Programmable Logic Controllers (PLCs) are isolated using VLANs to guarantee uninterrupted operations.
Challenges and Considerations
While VLANs offer significant advantages, implementing them in industrial networks requires careful planning:
Configuration Complexity: Misconfigured VLANs can lead to communication failures or security vulnerabilities.
Interoperability Issues: Ensuring compatibility between devices and protocols is crucial when designing VLAN-based networks.
Scalability: As networks grow, VLAN management can become challenging without proper documentation and automation tools.
Conclusion
VLANs are indispensable in modern industrial networks, providing the flexibility, security, and efficiency required to meet the demands of Industry 4.0. By enabling precise traffic segregation and prioritization, VLANs enhance the performance of industrial protocols, ensuring seamless and reliable communication in complex environments. As industrial networks continue to evolve, VLANs will remain a cornerstone of effective network design, bridging the gap between IT and OT systems while safeguarding critical operations.
